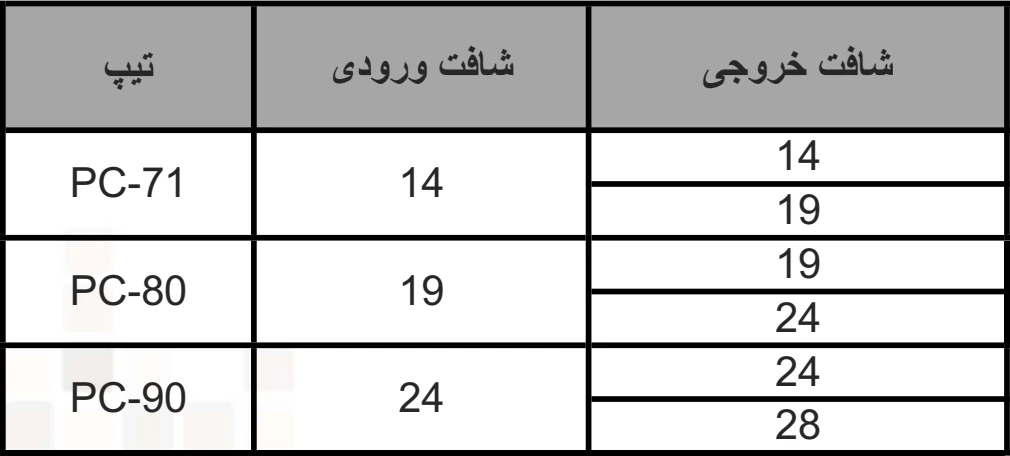

PC Helical Gearbox

The PC Helical Gearbox is a compact and efficient fixed-ratio speed reducer designed for reliable power transmission in industrial machinery. With a 1:3 gear ratio, it reduces the input speed while increasing the available output torque, providing smooth, quiet, and efficient operation. Its robust construction and compact design make it suitable for applications such as conveyors, packaging machinery, material handling equipment, and various automated industrial systems.

Gear Structure Mainly: composed of helical gears, including active helical gears and driven helical gears. The tooth profile of helical gears is spiral. Compared with spur gears, it has a large overlap and a large number of gear pairs meshing at the same time.
Shaft Arrangement: Usually a parallel shaft structure is adopted, and the input shaft and the output shaft are parallel to each other. This structure is convenient for connection and installation with other equipment.
Box Structure: Generally a sealed box made of cast iron or cast aluminum, with sufficient strength and rigidity to withstand the load during gear transmission, and play a good sealing and lubrication role to protect internal gears and bearings.

Industrial Automation: Widely used in conveying equipment, robot joints, packaging machinery and other fields of automated production lines, providing stable power and precise speed control for equipment.
Building Materials: Machinery Such as cement mixers, concrete mixing stations, brick and tile production equipment, etc., helical gear reducers can meet the high load and long-term operation requirements of these equipment in harsh environments.

Smooth Transmission: The overlap of helical gears is large when they are meshing, and the number of gear pairs involved in meshing is large, so the transmission is smooth, the vibration and noise are lower than those of spur gear reducers, and the advantages are more obvious under high speed and heavy load conditions.
High Load-bearing Capacity: Since the contact stress of the tooth surface of the helical gear is evenly distributed and the overlap is large, the load borne by a single gear tooth is relatively small, so the helical gear reducer has a high load-bearing capacity and can withstand large torque and radial loads.
High Transmission Efficiency: The transmission efficiency of helical gear reducers is usually above 90%. Compared with some other types of reducers, they have higher energy conversion efficiency and can effectively reduce energy consumption.
